440211-00567散热器组件P222FE斗山

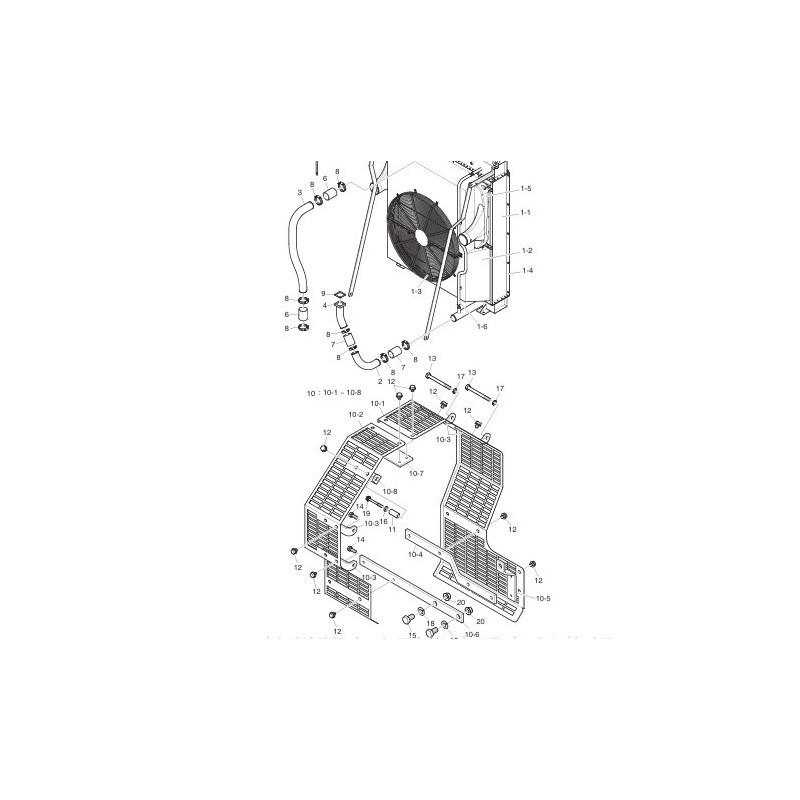

1 440211-00526라디에이터 조립품RADIATOR ASSY 1 1 1 1-1 440211-00567라디에이터 조립품RADIATOR 1 1 1 1-2 110948-00144휀 슈라우드SHROUD,FAN 1 1 1 1-3 110921-02545휀 가드GUARD,FAN 1 1 1 1-4 101569-00165라디에이터 가드GUARD,RADIATOR 1 1 1 1-5 400215-00036공기 냉각기 조립품INTERCOOLER ASSY 1 1 1 1-6 420202-00339파이프PIPE,EXPANSION 1 1 1 1-7 110958-02383서포트SUPPORT,RADIATOR 1 1 1 1-8 110958-02384서포트SUPPORT,RADIATOR 1 1 1 2 420211-00355냉각수 파이프PIPE,COOLING WATER 1 1 1 3 420211-00731냉각수 파이프PIPE,COOLING WATER 1 1 1 4 420211-00477냉각수 파이프PIPE,COOLING WATER 1 1 1 5 420101-00974에어 호스HOSE,AIR 1 1 1 6 420109-00841냉각수 호스HOSE,COOLING WATER 2 2 2 7 420109-00842냉각수 호스HOSE,COOLING WATER 2 2 2 8 120202-00238호스 클램프CLAMP,HOSE 8 8 8 9 67.06901A0001가스켓GASKET 1 1 1 10 110508-12452A휀 커버 조립품COVER ASSY,FAN 1 1 1 10-1 110508-12415휀 커버COVER,FAN 1 1 1 NS 10-2 110508-12417휀 커버COVER,FAN 1 1 1 10-3 110515-00233브라켓 커버COVER,BRACKET 4 4 4 NS 10-4 110515-00234브라켓 커버COVER,BRACKET 1 1 1 NS 10-5 110515-00235브라켓 커버COVER,BRACKET 1 1 1 NS 10-6 110515-00236브라켓 커버COVER,BRACKET 1 1 1 10-7 430216-00252커버 조인트JOINT,COVER 1 1 1 NS 10-8 110515-00238브라켓 커버COVER,BRACKET 1 1 1 11 65.91701-0191스페이서SPACER 1 1 1 12 06.01923-3111볼트 조립품 M8x16 BOLT ASS'Y M8x16 20 20 20 13 06.01923-3125볼트 조립품 M8x70 BOLT ASS'Y M8x70 2 2 2 14 06.01923-3114볼트 조립품 M8x22 BOLT ASS'Y M8x22 2 2 2 15 06.01283-7415육각 볼트 M14x25 BOLT,HEX 2 2 2 16 06.01013-9240육각 볼트BOLT,HEX 1 1 1 17 65.90710-0001A와 셔WASHER 2 2 2 18 06.16731-2110스프링 와셔 A14 WASHER, SPRING A14 2 2 2 19 06.16731-2108스프링 와셔 A10 WASHER, SPRING A10 1 1 1 20 120305-00005육각 훌랜지 너트NUT,HEX FLANGE 2 2
1 440211-00526散热器组件RADIATOR ASSY 1 1-1 440211-00567散热器组件RADIATOR 1 1-2 110948-00144螺纹管，FAN1 1 1-3 110921-02545 GUARD防护罩，风扇1 1 1-4 101569-00165散热器护罩GUARD，散热器1 1 1-5 400215-00036空气冷却器组件INTERCOOLER ASSY 1 0 1-6 420202-00339管道PIPE，扩展1 1 1-7 110958-02383支持SUPPORT，散热器1 1 1-8 110958-02384支持支持散热器1 1 2 420211-00355冷却液管PIPE，冷却水1 1 3 420211-00731冷却水管道PIPE，冷却水1 1 4 420211-00477冷却水管道PIPE，冷却水1 1 5 420101-00974空气软管HOSE，AIR 1 6 420109-00841冷却水软管HOSE，冷却水2 2 7 420109-00842冷却水软管HOSE，冷却水2 2 8 120202-00238软管夹CLAMP，HOSE 8 9 67.06901A0001垫圈GASKET 1 0 110508-12452A罩盖总成COVER ASSY，风扇1 1 10-1 110508-12415罩盖COVER，FAN 1 NS 10-2 110508-12417罩盖COVER，风扇1 1 10-3 110515-00233支架盖COVER，支架4 NS 10-4 110515-00234支架盖COVER，支架1 NS 10-5 110515-00235支架盖COVER，支架1 NS 10-6 110515-00236支架盖COVER，支架1 1 10-7 430216-00252盖接头JOINT，COVER 1 NS 10-8 110515-00238支架盖COVER，BRACKET 1 11 65.91701-0191螺栓SPACER 1 12 06.01923-3111螺栓组件M8x16 BOLT ASS'Y M8x16 20 13 06.01923-3125螺栓组件M8x70 BOLT ASS'Y M8x70 2 14 06.01923-3114螺栓组件M8x22 BOLT ASS'Y M8x22 2 15 06.01283-7415六角螺栓M14x25 BOLT，HEX 2 16 06.01013-9240六角螺栓，HEX1 1 17 65.90710-0001A和WASHER 2 18 06.16731-2110弹簧WASHER A14 WASHER，SPRING A14 2 19 06.16731-2108弹簧垫圈A10 WASHER，SPRING A10 1 20 120305-00005六角螺母NUT，HEX法兰2 2
