服饰饰品自动点钻机 双工位烫钻机 自动吸钻 激光定位

双盘烫钻机

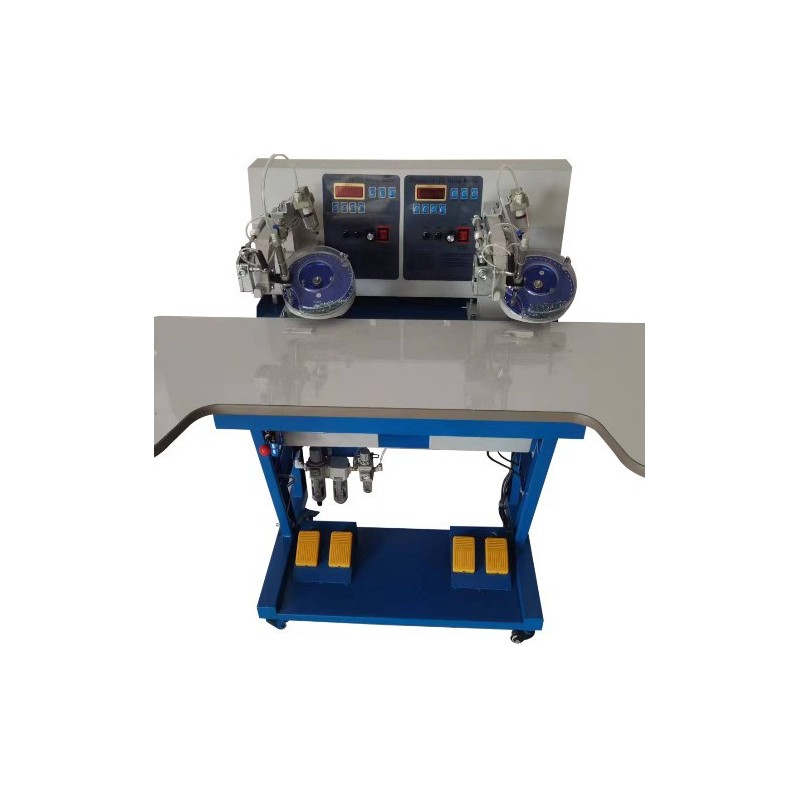

Double Plates Semi Auto HotFix Rhinestone Machine

  产品特性:1采用新型料盘罩盖，防止烫钻在机器震动时跌落

It uses the new plate cover to prevent rhinestones from droping during the vibration of the machine and eventually saves the cost

2有连续钉珠单点单打两种模式，可根据生产需要自由切换

The machine can fix the pearl continue and one point one piece,can convert by the proguction requirement

3采用新的摆动装置，工作更加平稳快速，有效延长使用寿命

The new rotation cylinder device ensures steady and quick operation,is aslo extends the operating time effectively.

4红外线定位对位，准确可靠

Ten infrared to position,more accurate.

5核心配件采用世界知名品牌，高效性能

Accurate infrared posilioning

机器用途：烫钻机是采用红外线定位，通过超声波将各型号的烫钻固定在各种布料,皮革面料，丝织料等各种面料上.

Function：According to the infrared positioning,the Hotfix Rhinestone Machine fix the different model rhinestones to the different kinds of fabric Material,Leather material,Silk material...

 机器型号Machine Model： TZSS500

主要参数 Specification：

盘数Color : 双盘 Double Plates

控制系统 Controller System   ： Double Xiang双翔科技

工作速度 Working Speed ：180-360 pcs/min

烫钻大小 Pearl Size：2mm-7mm SS6,SS8,SS10,SS12,SS16,SS20,SS30

台板尺寸 Working Table Max Size    1160mm*500mm

工作电压 Voltage : 220V(50/60HZ)

功率 Electric power:200W

气压 Air Pressure 0.4-0.5mpa

机器尺寸 Machine Size: 1160mm*860mm*1180mm

机器重量 Machine weigh:85KG

保修期 Warranty :一年 One Year
