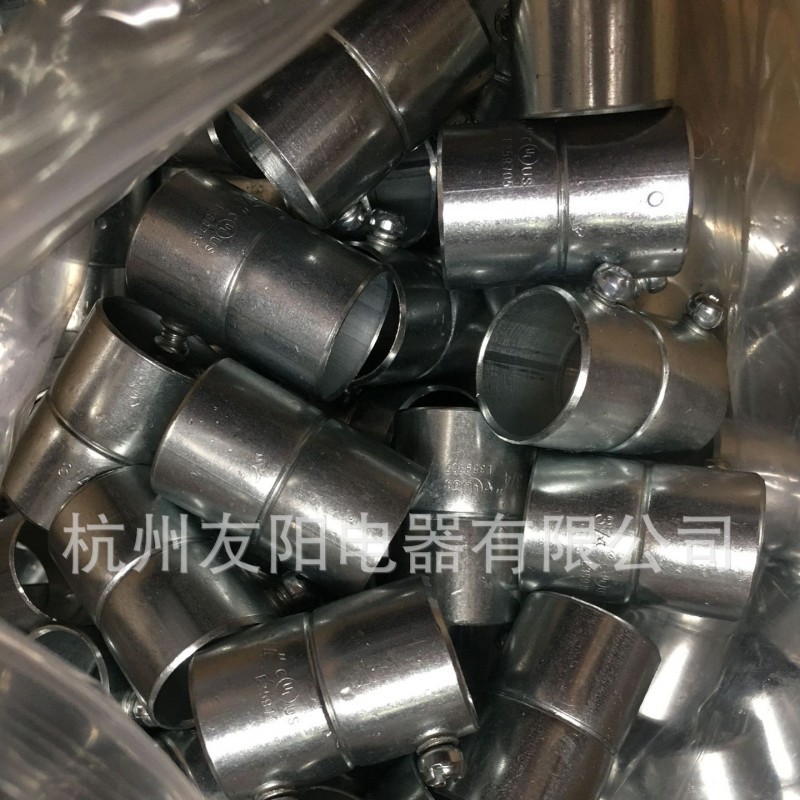

1.EMT connector
2.EMT铁锁接
3.EMT铁管接
EMT ConNECTORS STEEL
| PICTURE | TRADE SIZE | CAT# | DEscriptION | PRICE | UNIT OF MEASURE |
 |
1/2" | 530S | PLATED STEEL BODY | ￥0.79 | EACH |
| 3/4" | 531S | PLATED STEEL BODY | ￥1.03 | EACH | |
| 1" | 532S | PLATED STEEL BODY | ￥1.55 | EACH | |
| 1-1/4" | 533S | PLATED STEEL BODY | ￥2.57 | EACH | |
| 1-1/2" | 534S | PLATED STEEL BODY | ￥3.45 | EACH | |
| 2" | 535S | PLATED STEEL BODY | ￥4.16 | EACH |
1/2" uninsulated set screw electrical connectors are used in dry locations to bond 1/2” EMT thinwall conduits to electrical junction boxes or enclosures. Garvin Industries’ uninsulated steel set screw connectors provide concrete tight connections when taped and properly secured with the included locknut, and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Additionally, set screw connectors are zinc electroplated for excellent corrosion protection. Set screw connectors are also made with a versatile combination head screw that can securely fasten a conduit to an electrical junction box using a slotted, Phillips, or Robertson head screw driver.
EMT Conduit Fittings
Garvin Industries EMT Conduit fittings are made from stamped steel or die cast zinc construction and support all sizes of conduit up to 4" in diameter. They come in both set screw and compression styles and can be ordered with or without an insulated plastic throat liner to protect wires being pulled
Set Screw Connectors - Uninsulated
Application:
These uninsulated set-screw connectors are used in dry locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. Garvin Industries’ uninsulated set-screw connectors provide concrete-tight connections when taped and properly secured with the included locknut. Garvin Industries’ set-screw electrical connectors are rated for electrical applications above 600 volts.
Advantages::
Garvin Industries’ uninsulated set-screw connectors have a durable construction that maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Set-screw connectors are made with a versatile combination head screw that can securely fasten a conduit to an electrical junction box using a slotted, Phillips, or Robertson head screw driver. Uninsulated set-screw connectors are available in zinc-plated
REFERENCE PICTURES:
