1. EMT Conduit
2. emt wiring tubing
3. electrical wire conduit
ELECTRICAL metaLLIC TUBE
| PICTURE | 贸易尺寸 | 外径 | 内径 | 厚度 | 长度 | 价格 | ||||
| INCHES | MM | INCHES | MM | INCHES | MM | FT | MM | |||
 |
1/2" | 0.706 | 17.93 | 0.622 | 15.80 | 0.042 | 1.067 | 10 | 3048 | ￥7.39 |
| 3/4" | 0.922 | 23.42 | 0.824 | 20.93 | 0.049 | 1.245 | 10 | 3048 | ￥11.27 | |
| 1" | 1.163 | 29.54 | 1.049 | 26.64 | 0.057 | 1.448 | 10 | 3048 | ￥16.70 | |
| 1-1/4" | 1.510 | 38.35 | 1.380 | 35.05 | 0.065 | 1.651 | 10 | 3048 | ￥24.82 | |
| 1-1/2" | 1.740 | 44.20 | 1.610 | 40.89 | 0.065 | 1.651 | 10 | 3048 | ￥28.78 | |
| 2" | 2.197 | 55.80 | 2.067 | 52.50 | 0.065 | 1.651 | 10 | 3048 | ￥36.62 | |
EMT Electrical Conduit EMT conduit is a metal thin walled conduit that comes in ten foot lengths. These sticks have no couplings on the ends. Couplings and connectors can be added to connect the next piece. These couplings come in setscrew and compression types. Setscrew couplings have two screws, one for each piece of conduit which holds the conduits together and also bonds the ground connection between the conduits. Advantages:: Steel Thinwall EMT conduit is easy to cut and easy to bend - reducing waste and installation time. metal conduit is non-combustible and easily adaptable to future wiring changes. metal conduit is a proven equipment grounding conductor and can reduce electromagnetic fields by up to 95%.
Note: Please comply with National and Local building and electrical code requirements when choosing the correct conduit and accessories for your wiring application.

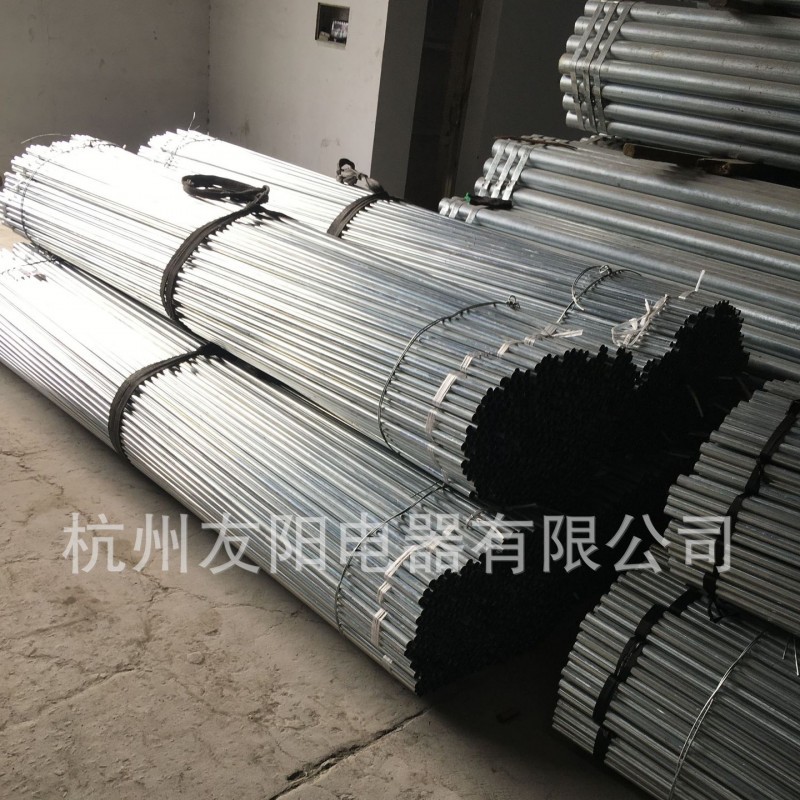

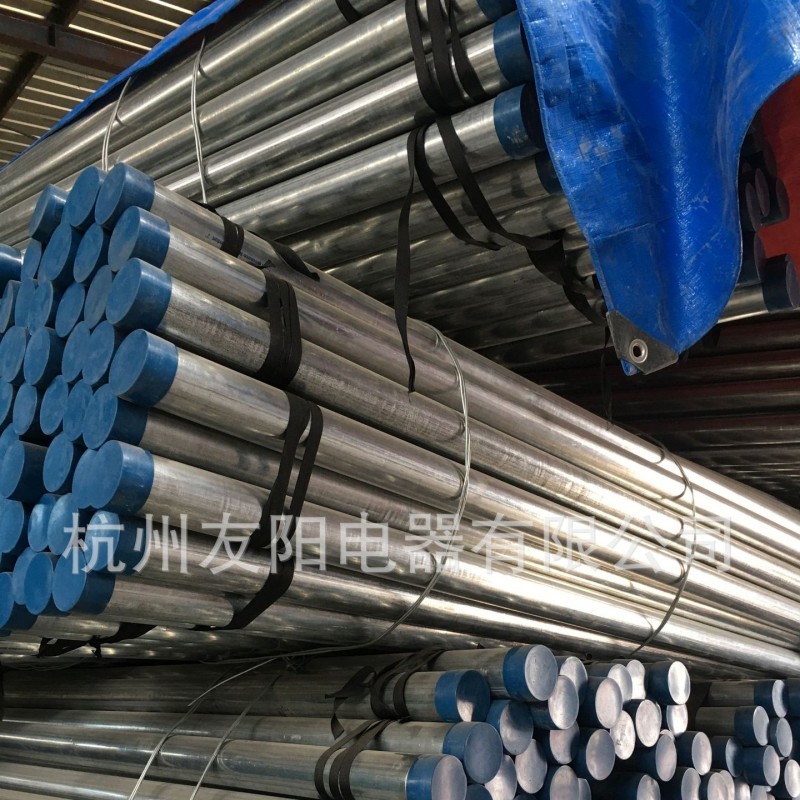

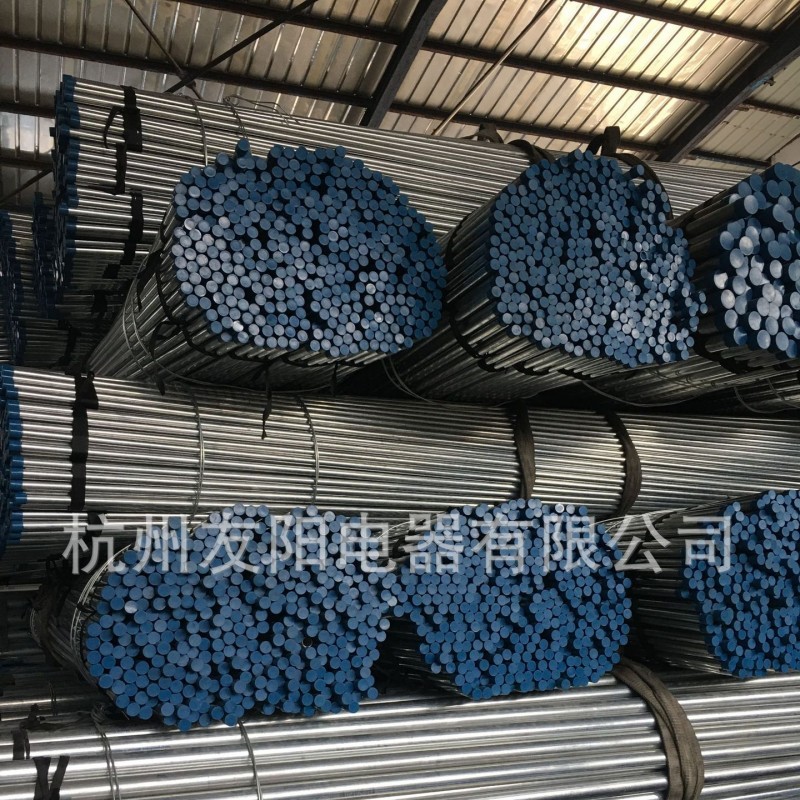

REFERENCE PICTURES:
