商品详情

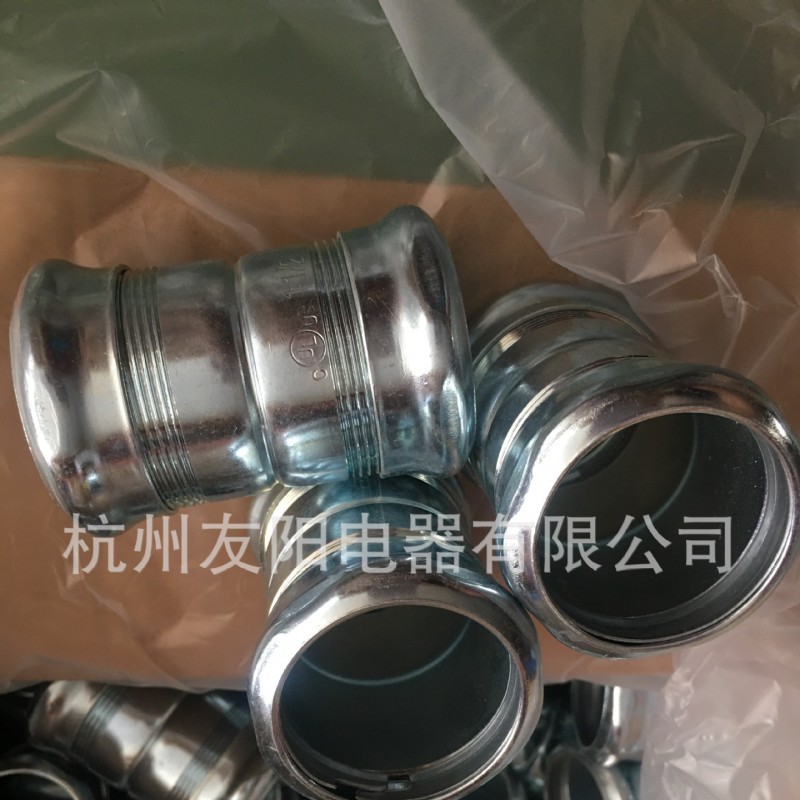

1/2" compression electrical couplings are used to connect the ends of two 1/2” EMT thinwall conduits together to extend the raceway. Garvin Industries’ steel compression couplings provide concrete tight connections when taped, and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of one conduit to another. They are also zinc electroplated for excellent corrosion protection in damp locations.
| EMT Compression Coupling---Steel | |||
Bitmap
|
1/2" | steel, compression type | |
| 3/4" | steel, compression type | ||
| 1" | steel, compression type | ||
| 1-1/4" | steel, compression type | ||
| 1-1/2" | steel, compression type | ||
| 2" | steel, compression type | ||
| 2-1/2" | steel, compression type | ||
| 3" | steel, compression type | ||
| 3-1/2" | steel, compression type | ||
| 4" | steel, compression type |
EMT Conduit Fittings
Garvin Industries EMT Conduit fittings are made from stamped steel or die cast zinc construction and support all sizes of conduit up to 4" in diameter. They come in both set screw and compression styles and can be ordered with or without an insulated plastic throat liner to protect wires being pulled.
Compression Couplings - Rain Tight
Application:
These rain-tight compression couplings are used in wet locations to connect the ends of two EMT thinwall conduits together to extend the raceway. Garvin Industries’ rain-tight steel EMT compression couplings have been designed to comply with the new rain-tight test requirements along with the 2008 NEC 358.42 and 314.15 requirements.
Advantages::
Garvin Industries’ heavy-gauge steel construction maintains mechanical protection and solid grounding of one conduit to another. Compression couplings are zinc electroplated for excellent corrosion protection in damp locations. Garvin Industries’ rain-tight EMT compression couplings come with the fitting preassembled making them ready to install on the conduit. Rain-tight compression couplings are installed like any other steel EMT compression fitting and require no special tools.
《产品实图》
《厂区》
《办公区》
《业务部及样品室》
《产品原料》
《工厂车间》
《产品装配》

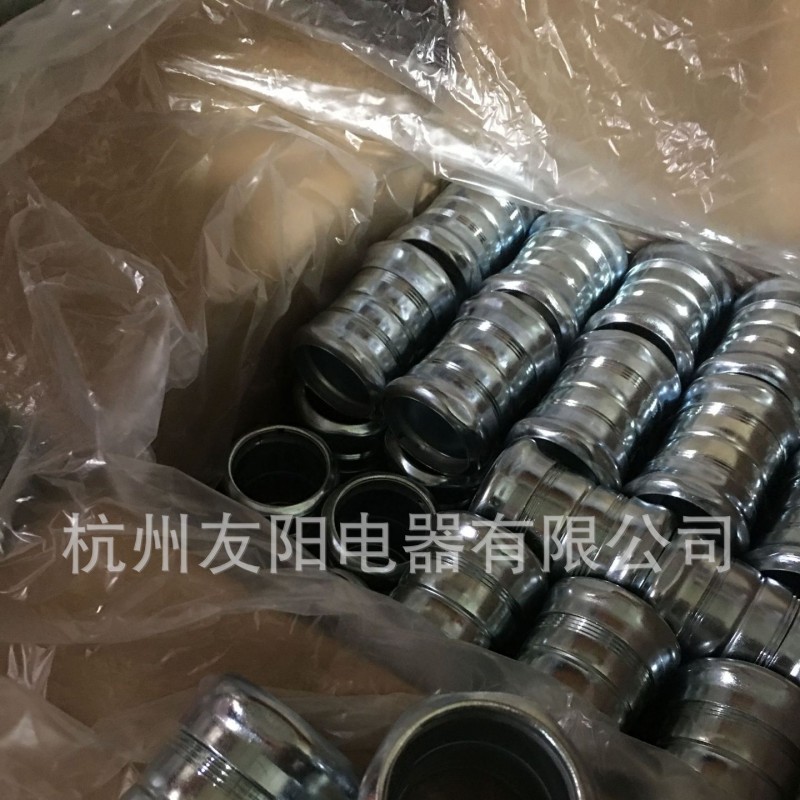

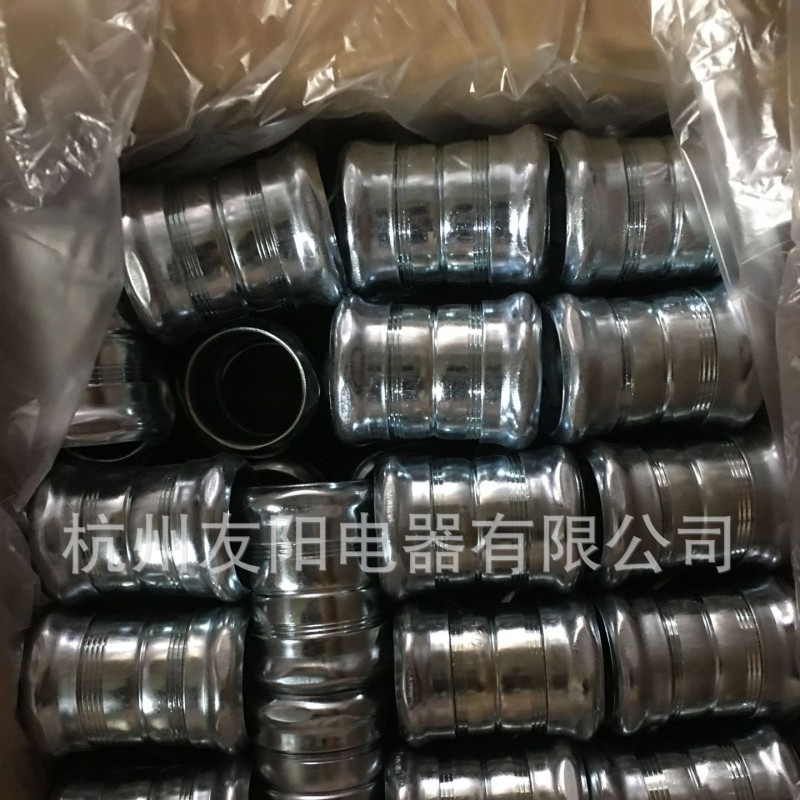

《产品包装》
《工厂出货》
《广交会》
《工厂荣誉》
