点击图片查看原图Strut Channel EMT Elbow EMT Compression Connector
商品单价 ￥7.00元
近30天已售
10
近90天已售
10
累计关注人数
40
通过认证
商品详情
1. EMT Conduit
2. emt wiring tubing
3. electrical wire conduit
ELECTRICAL metaLLIC TUBE
| PICTURE | 贸易尺寸 | 外径 | 内径 | 厚度 | 长度 | 价格 | ||||
| INCHES | MM | INCHES | MM | INCHES | MM | FT | MM | |||
 |
1/2" | 0.706 | 17.93 | 0.622 | 15.80 | 0.042 | 1.067 | 10 | 3048 | ￥7.39 |
| 3/4" | 0.922 | 23.42 | 0.824 | 20.93 | 0.049 | 1.245 | 10 | 3048 | ￥11.27 | |
| 1" | 1.163 | 29.54 | 1.049 | 26.64 | 0.057 | 1.448 | 10 | 3048 | ￥16.70 | |
| 1-1/4" | 1.510 | 38.35 | 1.380 | 35.05 | 0.065 | 1.651 | 10 | 3048 | ￥24.82 | |
| 1-1/2" | 1.740 | 44.20 | 1.610 | 40.89 | 0.065 | 1.651 | 10 | 3048 | ￥28.78 | |
| 2" | 2.197 | 55.80 | 2.067 | 52.50 | 0.065 | 1.651 | 10 | 3048 | ￥36.62 | |
EMT Electrical Conduit EMT conduit is a metal thin walled conduit that comes in ten foot lengths. These sticks have no couplings on the ends. Couplings and connectors can be added to connect the next piece. These couplings come in setscrew and compression types. Setscrew couplings have two screws, one for each piece of conduit which holds the conduits together and also bonds the ground connection between the conduits. Advantages:: Steel Thinwall EMT conduit is easy to cut and easy to bend - reducing waste and installation time. metal conduit is non-combustible and easily adaptable to future wiring changes. metal conduit is a proven equipment grounding conductor and can reduce electromagnetic fields by up to 95%.
Note: Please comply with National and Local building and electrical code requirements when choosing the correct conduit and accessories for your wiring application.
REFERENCE PICTURES:

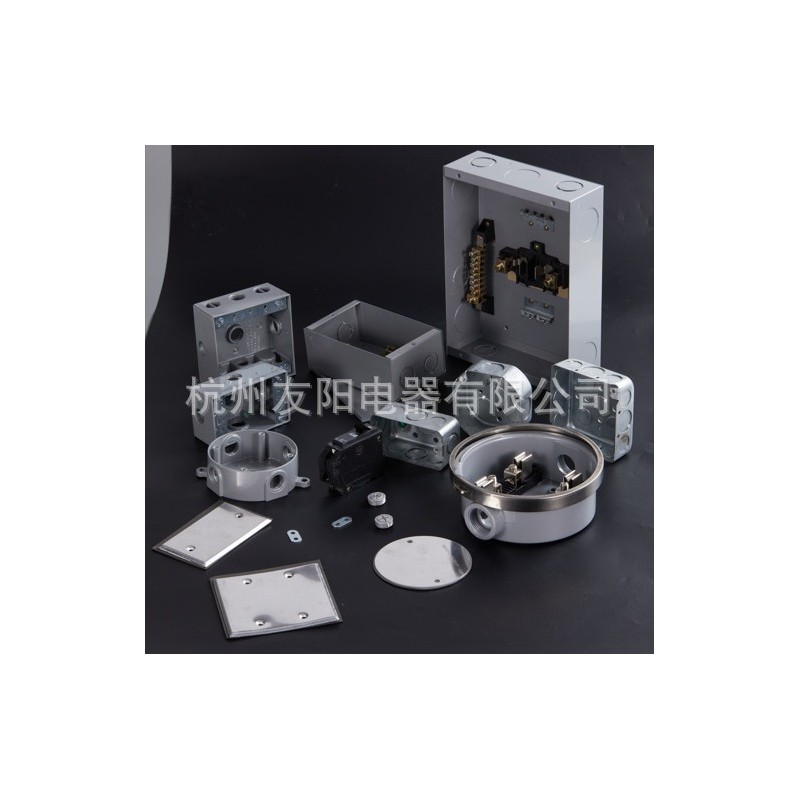

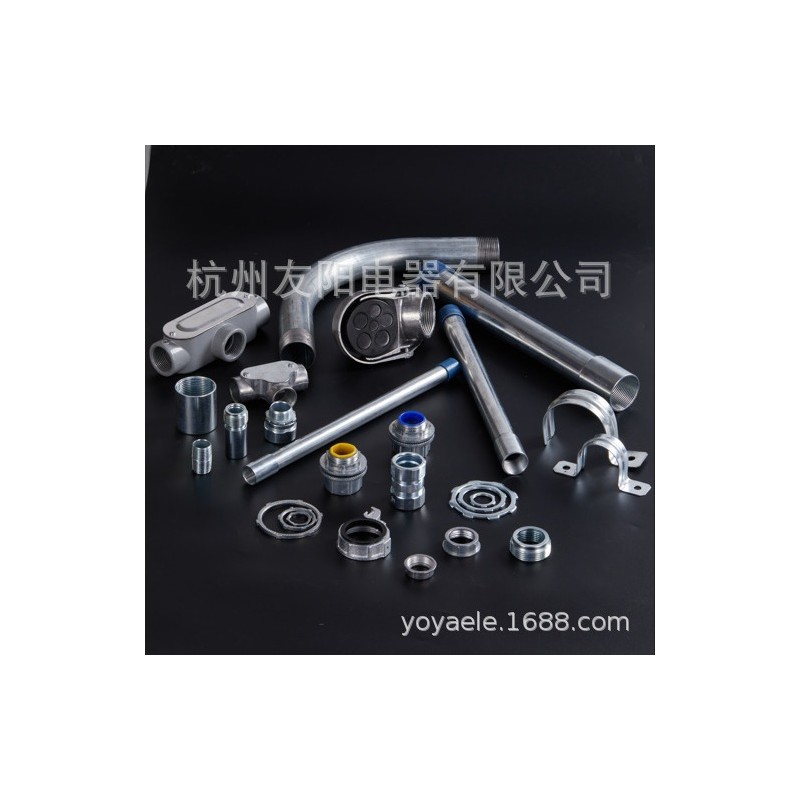

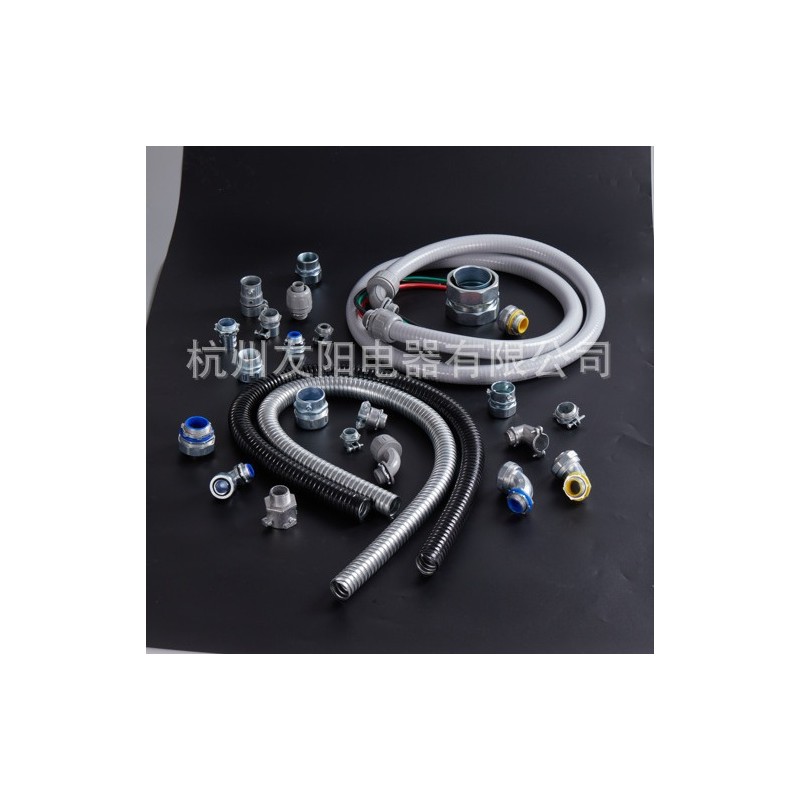

《我们生产的所有产品》
《厂区》
《办公区》
《产品原料》
《工厂车间》
《产品装配》
《产品包装》
《工厂出货》
《广交会》
《工厂荣誉》
