16件套预热塞拆装工具 16pcs热活塞修复工具 柴油发动机修理工具

16件套柴油发动机预热塞修理工具

本产品适用于从气缸盖上拆下损坏或损坏的电热塞
拆下8毫米和10毫米的电热塞。
套件包括安全拆卸电热塞所需的钻孔、定心和拔出适配器。

使用方法：
T形螺母放在中心电极上。
用手枪把电极拆开。就在附近！拆下中心电极。如果中心电极没有在断裂点上切断，则通过拧松将电极与零件（套管）一起拧松并聚焦。
套管放在中间电极上，固定并旋下钻头。
安装手柄钻，向右钻。这个钻套稍微涂上一层厚厚的润滑脂（脂肪）
小心：在钻井过程中，低速钻穿并多次清除杂质。穿孔到尽头。
穿线钻在2 cm层塞上切出1/4英寸的螺纹长度。尤其重要的是你随后会去除杂质。
螺纹适配器件转动拔出装置并拧入火花塞螺纹1/4英寸的火花塞。
套管上出现反支撑和带压缩螺母的下表面碎屑塞。
然后塞住RETA螺纹。
在拧紧的钻头上涂抹一层厚厚的润滑脂，这样污垢就不会落入发动机的燃烧室。

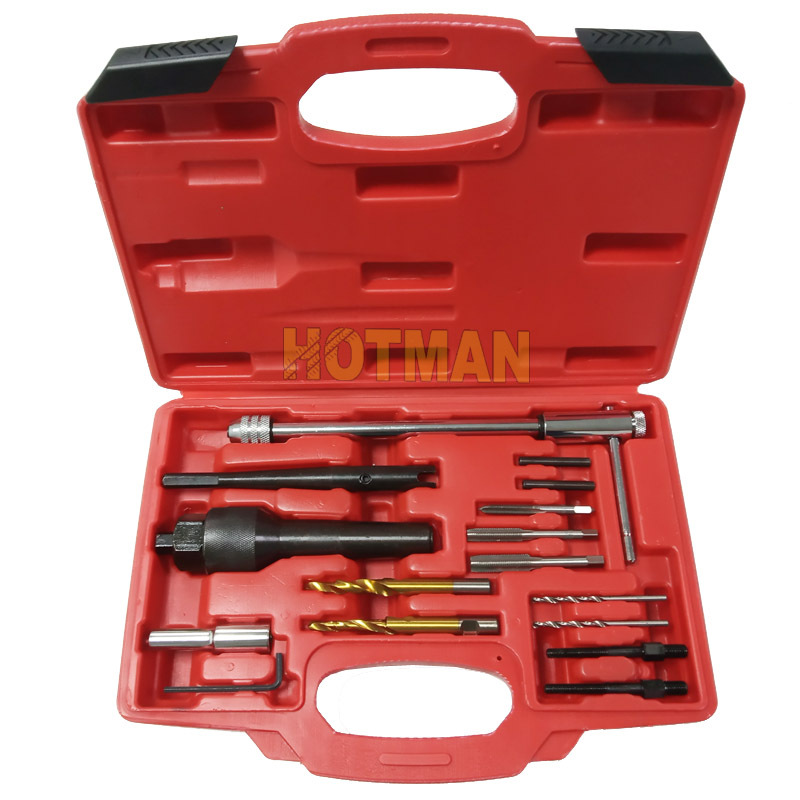

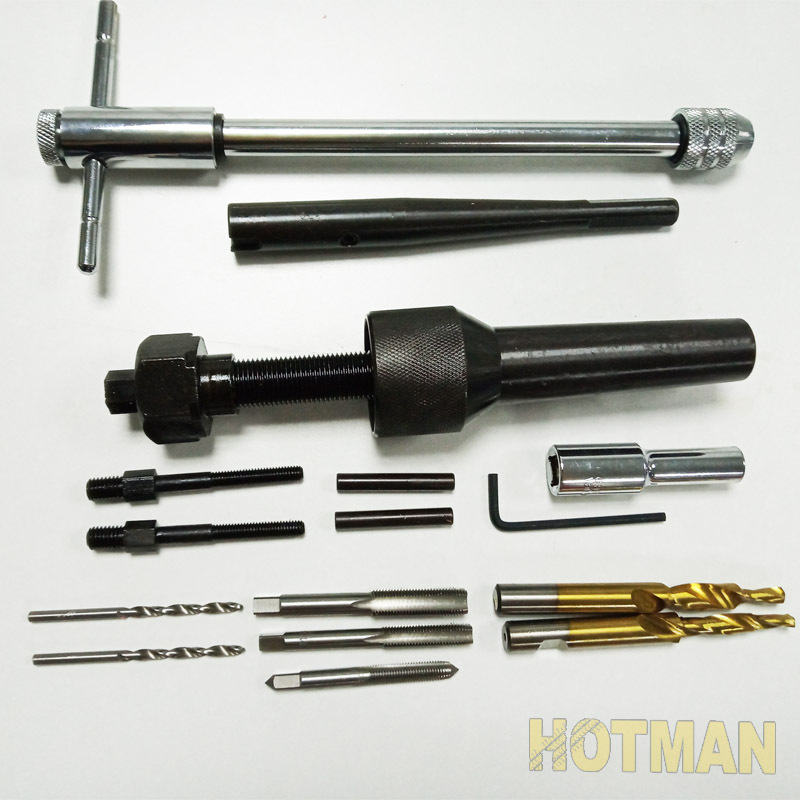

产品包括：
1个T形手柄
2个电热塞：7 x 0.22“&9 x 0.22”
1个方形插座：0.38“
1 x内六角扳手：0.12”
2 x管：直径0.24“
3个丝锥（M10 x 1；M8 x 1；1/4“-28UNF）
1个钻机安装工
1 x六角0.47“主轴和六角1.2”螺母锥形中心工具
2 x钻头：直径0.14“
2 x 1/4“-28 UNF六角：0.35”
以吹塑外壳提供

• Designed to remove damaged or broken glow plugs from cylinder heads
• Removes 8mm and 10mm glow plugs.
• Set includes all required adaptors for drilling, centring and pulling for the safe removal of glow plug
• With a storage case.

• The T-profile nut is placed on the center electrode .
• The electrode detached with a pistol . Right around! Remove the center electrode. If the central electrode has not cut down on the breaking point , then unscrew and focuses electrode with part ( sleeve ) by unscrewing.
• Sleeve is placed on the middle electrode, fixed and unscrew the drill included.
• Fit the handle drill , drill right . This drill sleeve coat slightly and apply a thick layer of grease ( fat )
• Caution : low speed is pierce and remove impurities several times during the drilling process . The pierce to the end.
• Threading drill cut a ¼ inch thread length in layer 2 cm plug . Particularly important is that you subsequently remove impurities .
• Threaded adapter piece revolves extraction and screw in the spark plug thread ¼ -inch plug.
• Sleeve dessurubare arises as contra - support and dessurubeaza debris plugs with compression nut
• Then plug Reta thread.
• You apply a thick layer of grease on the drill bit screwed , so dirt does not fall into the combustion chamber of the engine.
