供应德力斯特食物垃圾处理器空气开关，按摩卫浴气压气动开关

Technical Parameters

MODEL

HT-CH01

Voltage

100V~250V AC

Current

10A

Power Line Certificate

VDE

Power cord length

1.2m

Pipe length

1.5m

Certificate

CE

Warranty

            1 year

sizes（mm）

 DIMENSION

75*200*135 (mm)

WEIGHT

415g

PACKAGE

1Pc/GiftBox,

72Pcs/Carton

         LC-A

            LC-B

        LC-C

            LC-F

        SLC-EG

     SLC-DM

     SLC-CG

    SLC-CM

      SLC-BG

      SLC-YJ

               SLC-30M

                  SLC-150H

●

多功能塞（Multi-functional Stopper）

方便安全地将垃圾塞进垃圾处理机的粉碎腔；防止刀叉、块状等日常厨房用品掉进垃圾处理机内部；

用作塞子放水或者储水；

Convenient and easy to brush away waste from fruit tray to sinks. Safe to put waste into crushing chamber of garbage disposal. To prevent cutlery, blocks and other daily kitchen supplies from dropping into garbage disposal inside. It also can be used as a plug to store or drain off water

●

防溅罩（Splash Guard）

丁晴橡胶（NBR）制造，具有良好的耐热性和耐低温性；防止机器高速运作的过程中食物垃圾溅出；为更换磨损的机器原配防溅罩提供便利；Made from nitrile butadiene rubber (NBR), with good heat resistance and low temperature resistance. To prevent food waste from spilling out when the machine runs at a high speed. Convenient to replace wearing original splash guard of the machine.

●

90°排水管（90 degree angle drain pipe）

增强ABS材料，美观大方，连接快速方便.

90 degree angle drain pipe in reinforced ABS material with generous shape is quick and easy to connect.

○

三通管（T-pipe）

PVC材料，抗老化耐腐蚀，设计独特，方便连接.

T-pipe in PVC material with anti-aging, anti-rot and unique design is very convenient to connect.

○

不锈钢塞子（Stainless Steel Stopper）

采用不锈钢与ABS组合，表面亮面处理；
耐腐蚀、耐高温橡胶边缘，密封性好，防止漏水.

Combined stainless and ABS material, surface polishing finish. Rubber edge is characterized by anti-corrosion and high temperature resistant, prevents leakage.

○

口径适配器（Caliber adapter）

优质不锈钢口径边缘，表面抛光处理，品质出众；
密封橡胶垫圈，耐腐蚀，耐高温，确保不漏水；
140mm，160mm和180mm三种规格，适合非国际标准（90mm）的水槽.

Caliber adapter, with best quality stainless steel caliber edge, surface polishing treatment and superior quality. Rubber gasket seal, with corrosion-resistance, high temperature resistant, is watertight. There are three specifications: 140mm, 160mm and 180mm. All are suitable for sinks in non-international standards (90mm).

○

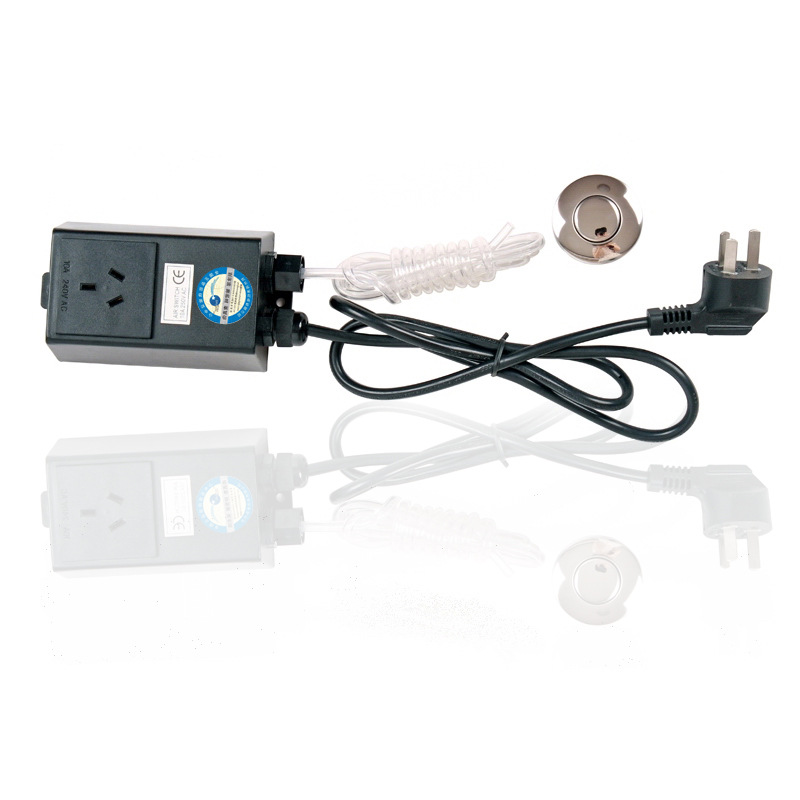

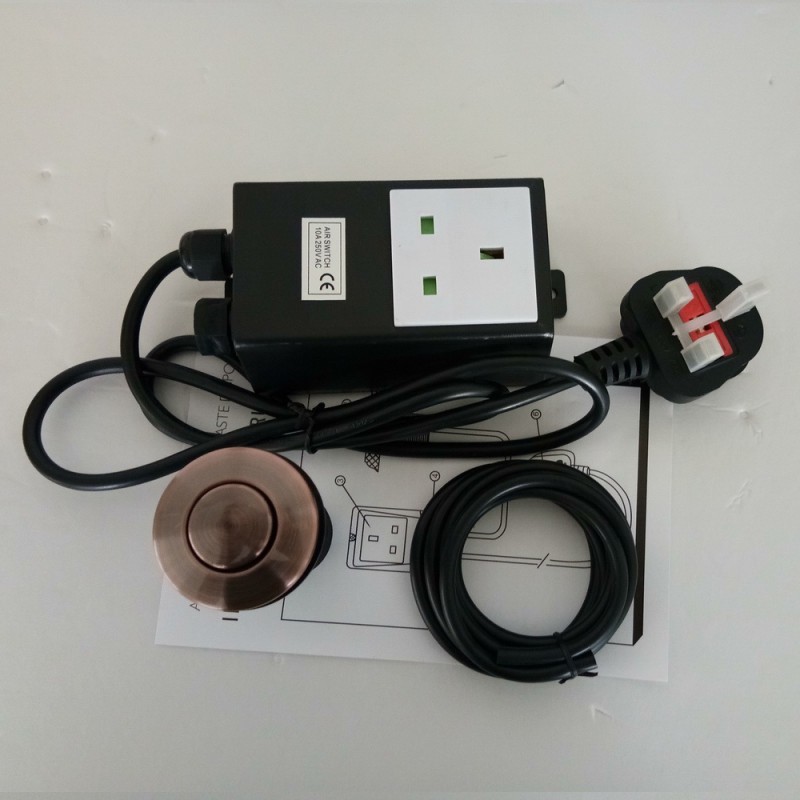

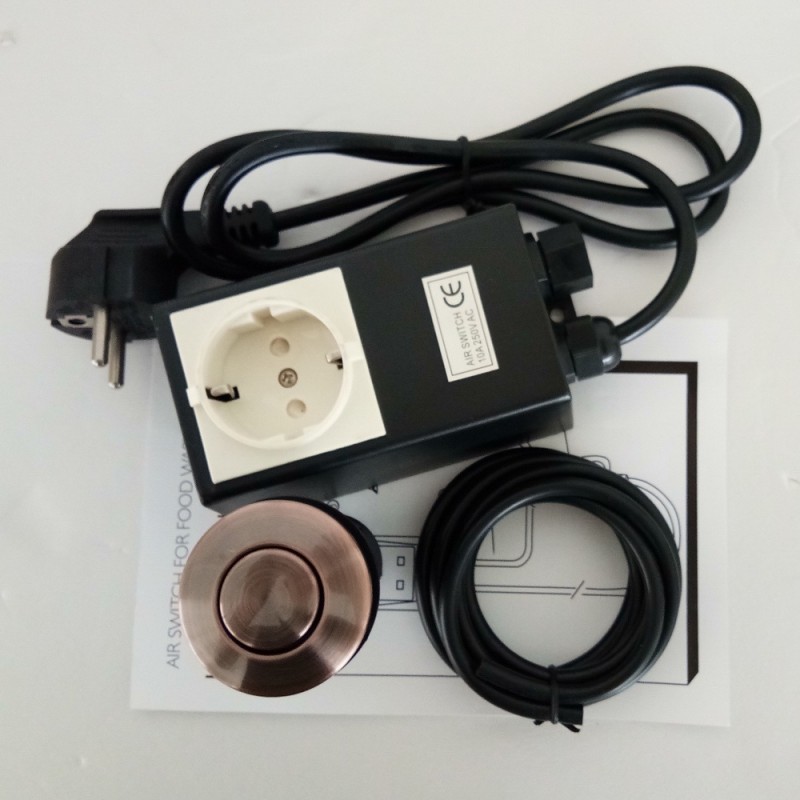

空气开关（Air switch）

适用于装修完毕但是未预留电源开关的厨房；
通过空气气压力开启关闭电源，确保用电安全；
两种材质的按钮，镀铬开关简洁明朗，不锈钢工艺更显尊贵.

Appliable to the renovated kitchens without reserving the power switches;Turn on/off the power by air pressure to ensure the electrical safety;Buttons of two materials: the chrome-plate switches are simple and clear while the stainless steel craft is more elegant.

○

射频开关（Radio frequency switches）

无线电数字编译码，抗干扰能力强；不需要对应方向，不受障碍物的阻挡，遥控距离可达15米.

radio digital coding and decoding, with strong anti-jamming capability, multi-directional, obstacles penetrable, with a remote control distance of up to 15 meters.

○

脚踏开关（Footswitch）

低功耗设计技术，工作稳定，操作安全便捷.

Adopt low-power techniques. External switch with relatively high stability is very safe and easy to operate.

○

定制电源线与插头（Customized Power Cord and plug）

为垃圾处理机配备符合各国要求的插头、电源线；
电线和插头均符合国际行业安全标准，确保整机品质；
贴心定制0.8到2.0米长的电源线供不同厨房环境选择.

Make to order according to varied national standard;

Available length between 0.8 and 2.0m for choice considerately;

International electrical standard socket to ensure security;

○

安装扳手（Installation wrench）

专业设计人员和锻造工匠打造，表层精心镀铬处理，用于德力斯特LC系列机型的安装和拆卸.

Built by professional designers and forging craftsmen, meticulous chrome plating on surface, designed for installation and dismantling of Dail Star LC Series Motors.

○

防卡扳手（Maintenance wrench）

专为德力斯特LC系列垃圾处理器设计。用于在卡机情况下的维护；插入机器底部的小孔前后摇动，直到能自由转动360度.

Designed for Dail Star LC Series Waste Processors. Mainly use to maintain machine when it seized up. Plug it in the small hole at the bottom of the device, and shake it back and forth, until it freely turns 360 degrees.
