汽修工具 16 件套内轴承拉拔器座圈分流器齿轮衬套提取器拆卸器

【Description】
This internal bearing puller set's expandable collets and threaded screw adapters are suitable for remove tight and jammed axles, bearings, and bushings on a wide variety of vehicles without damaging the removed parts. Get all your work done on parts from 1/4 to 2-1/3 inch diameter (about 7-58 mm) and perfect for professional and DIY use.
Constructed of a strong,durable chrome molybdenum steel,designed for strength, durability, and longevity.

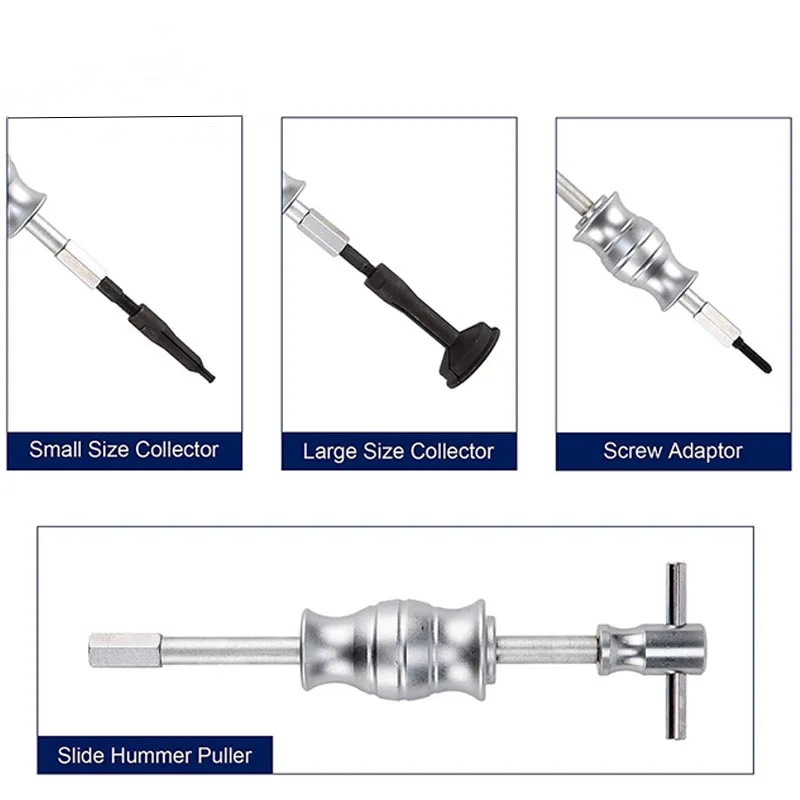

Includes a slide hammer, counterstay puller, spare pin bolt, 3 screw adapters and 10 split collets.
Split collet type collets are made from chrome molybdenum steel turn and they expand to grip the inner bearing race, fit a wide range of applications.
Slide hammer grips have flared ends,to increase the power of the slide hammer.

【Applicable】
For most parts, simply install a suitable collet, lock it into the inner ring, and pull the slide hammer back to knock out the bearing or bushing easily. For tighter or finer operations, the counterstay can be slowly tightened to more carefully extract the part. It is suitable for remove tightly jammed axles, wheeling bearings, and Bushings of kinds cars,machines.

【Specification】
Material: 45# steel forged
Collects material: Chrome Molybdenum steel
Packaging: BMC (Blow Moulded Case)

【Includes】
1 x sliding hammer
1 x 2.5 jaws puller
1 x counter stay puller

3 x screw adaptors
M10 x 1.5
M10 x 1.5 to M8 x 1.25
M10 x 1.5 to M6 x 1.0

10 x Collects (segment grip type)
8-11mm
12-17mm
18-23mm
24-29mm
30-34mm
34-38mm
39-43mm
44-48mm
49-53mm
54-58mm

【Installation and use】
1. Insert the correct collet in the bore of the bearing and turn the nut to expand the collet till it is secure.
2. U-shaped bearing seal puller can be used by threading the bushing puller onto the collet.
3. Tighten the nut on the top of the assembly to slowly pull the bearing out of place.
4. Attach the slide hammer and yank the weight towards the handle to give an extra snap of force.
5. Repeat action until the bearing or bushing has been removed.
